What is Control4?

Control4 is a leading professional home automation platform, that provides seamless integration of a wide range of systems within a home or commercial environment.

It allows homeowners to centrally control lighting, climate, audio-visual equipment, security systems, motorised blinds, and wide range of other connected devices through a single, intuitive interface.

Unlike standalone smart devices, Control4 delivers a fully coordinated ecosystem, enabling automation routines and personalised scenarios that respond to time of day, occupancy, or user preferences.

For example, a single command can turn down the lighting levels, close blinds, turn on your AV System, and start a movie – creating a fully customised environment.

The platform supports both local and remote control allowing you to take control of your home from anywhere in the world – via their remotes, touchscreen, or smartphones, tablets with their app for both Apple and Android – ensuring convenience, security, and energy efficiency.

With professional installation and configuration, Control4 transforms complex systems into a unified, easy-to-use experience, making it ideal for both modern homes and high-end commercial applications.

Requirements:

• Control4 processor – Core or EA Processor is the brain behind your system, and where all the complex automations and routines are processed.
• Structured network cabling – Ideally Cat6a/Cat7 Ethernet to every room.
• Speaker cable – if you plan to use a audio matrix to distribute audio throughout your home.
• Interface – Remotes, touchscreens or keypads.
• Ease of install – Control4 can be easily installed in both new builds and existing properties, offering equipment that can be easily retrofitted without the need for electrical rewiring.

• Widely recognised and familiar interface
• Hands-free operation for cooking, cleaning, or relaxing
• Works with Control4 for seamless Home Automation integration

Integration & Example:

• Alexa can trigger, routines, scenes and controls devices via voice, including smart plugs, lights, blinds, AV equipment, and more.

Requirements:

• An Amazon Prime Account
• Amazon Echo Device
• Control4 or AVA integration
• A reliable network connection

Apple HomeKit is Apple’s smart home platform, enabling iPhone, iPad, and Apple Watch users to control compatible smart devices via the Home app or Siri.

To enable remote access and automation, HomeKit requires a Home Hub – typically an Apple TV, HomePod, or HomePod Mini – which acts as the central processor and bridge for connected devices.

HomeKit supports a range of communication protocols, including Bluetooth, Wi-Fi, Thread, and Matter allowing secure and reliable connections across lighting, climate control, security systems, blinds, and more.

Why use HomeKit?

• Intuitive interface for Apple users
• Voice control via Siri
• Seamless integration with Apple ecosystem

Integration & Example:

• Connects to Control4 and AVA for complete automation control
• Works with lighting, climate, security, blinds, and AV devices

What is AVA?

AVA is a centralised home automation interface that enables seamless control of your entire smart home ecosystem. Through touchscreens, mobile apps, or remote access, AVA allows users to manage lighting, climate, audio-visual systems, security, blinds, and other connected devices from a single, intuitive platform.

A key feature of AVA is that its remotes run on Android, meaning they can not only control the home automation system but also run most Android apps. This transforms the AVA interface into a fully functional smart device, offering additional entertainment, productivity, and connectivity options alongside your home automation control.

AVA also supports personalised automation routines, scheduled actions, and scene-based control, allowing multiple devices to operate together in harmony. Remote monitoring and management ensure comfort, security, and energy optimisation, whether you are at home or away.

Why use AVA?

• Centralises all device control into one interface
• Simplifies complex automation for every room
• Supports multi-zone AV, lighting, climate, security, and blinds

Requirements:

• AVA brain in central rack
• An AVA Remote
• Network cabling / PoE to Touchscreens’
• Compatible devices

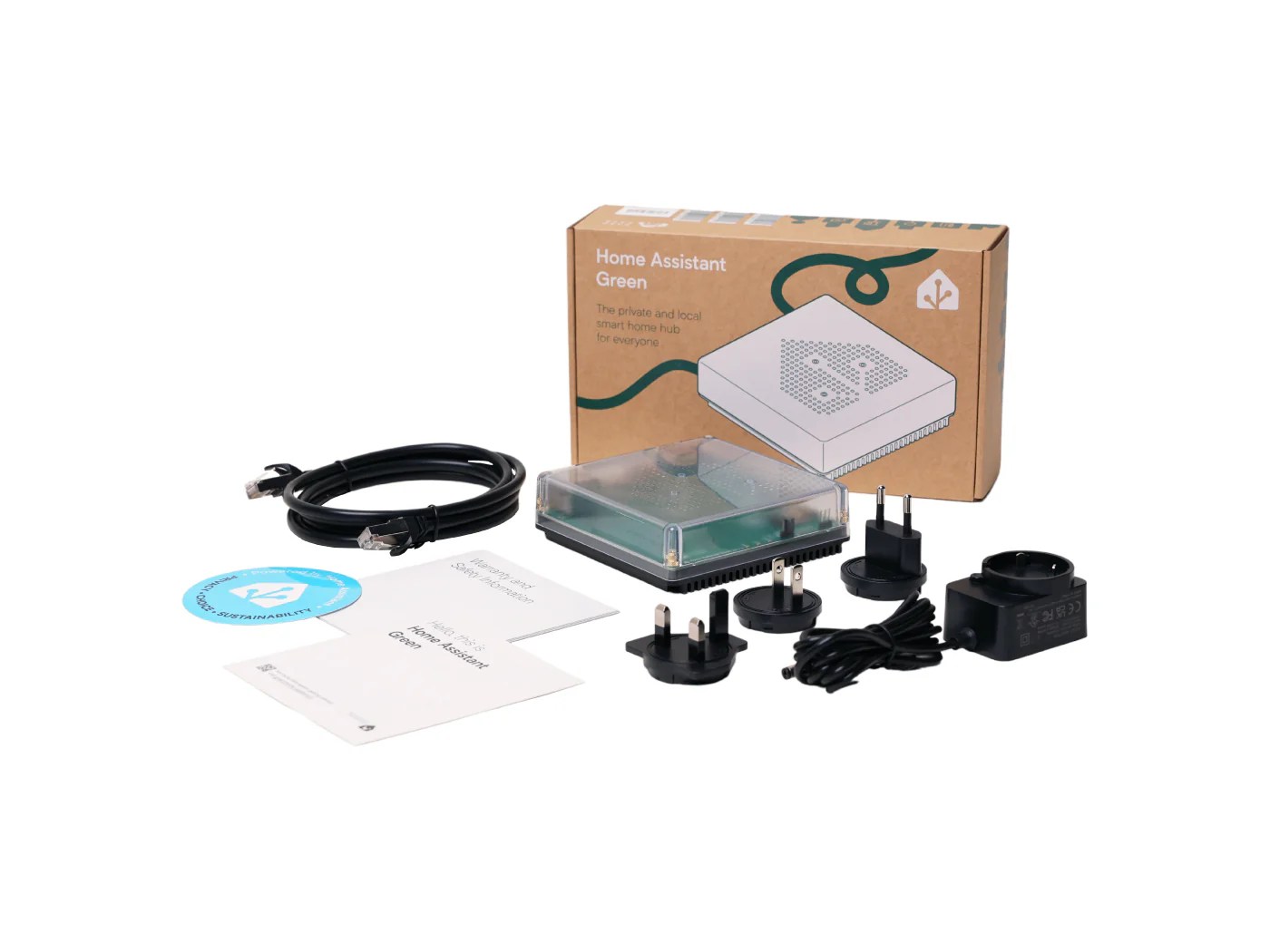

How It Works

Home Assistant acts as a central controller and protocol bridge, enabling devices that are not natively supported by professional automation systems like Control4 to be integrated into your ecosystem. It works with a wide range of communication protocols including Z-Wave, Zigbee, MQTT, REST APIs, and WebSockets.

This allows unsupported or niche devices to be made accessible to Control4, effectively extending the reach of your automation system.

Beyond device integration, Home Assistant can handle complex logic and “heavy lifting” automation that may be difficult to implement directly in Control4.

Using its scripting engine and Node-RED or YAML-based automations, it can manage advanced triggers, conditions, and actions—such as multi-device scenes, time-based schedules, or sensor-driven responses—before sending commands to Control4 to execute coordinated actions across your smart home.

Integration with Control4

Home Assistant integrates with Control4 through APIs, drivers, or middleware solutions, allowing bi-directional communication.

You can trigger Control4 scenes from Home Assistant, synchronise device states, or create hybrid automations that combine devices from both platforms.

This enables a unified smart home environment where professional-grade Control4 reliability is enhanced by Home Assistant’s flexibility, supporting devices, protocols, and automation logic that would otherwise be impossible to implement within Control4 alone.

Why Use Homey with Control4
When paired with Control4, Homey acts as a powerful integration bridge rather than a replacement. Control4 remains the premium front-end for user experience — touchscreens, remotes, keypads and polished UI — while Homey handles device ecosystems that Control4 may not natively support.

Homey can aggregate smart devices, cloud services and emerging standards such as Matter, then expose them cleanly into Control4. This reduces reliance on multiple drivers, simplifies long-term support, and allows more advanced or conditional automation to be handled externally without overloading the Control4 programming layer.

The result is a system that combines Control4’s professional-grade interface and reliability with Homey’s broad compatibility and automation flexibility — a future-proof, scalable solution that offers the best of both worlds.

Equipment & Cabling:

• Network switches, PoE devices, AV matrix switchers, Amplifiers, Control4 controllers, UPS systems, and lighting panels
• Ethernet/Cat6a/Cat7 for touchscreens, cameras, access control, and automation
• Fibre optic backbones, for floor to floor connections, high-speed AV streaming and video-over-IP
• Speaker cables for multi-zone audio (indoor & outdoor)
• Power Distribution, for AV and Automation
• Cabling for CCTV, Automatic Gates, and Security Systems
• Relay modules controlling lighting, blinds, heating, gates, water fountains, and irrigation in the garden.

 Why it matters:

• Organises network, AV, lighting, and Automation Systems
• Supports future expansion and upgrades
• Provides clean, centralised power and data distribution
• Enables easy maintenance and servicing

Multi-Zone AV:

• Audio and video delivered across multiple rooms or outdoor spaces
• Independently or synchronised – Imagine keeping your Skybox neatly hidden away within your centralised equipment rack, but being able to watch and control it, from in your Living room, in Bedrooms or in the Cinema.

Integration & Example:

• HDBaseT or Video-over-IP for video – with the use of Network cable with can send both the video and audio from any device to any room in the property.
• Multi-zone amplifiers for audio – play your favorite playlist and song, on any speaker in the house from a touch of a button.

1. Preventing Accidents:

• With the use mmWave Sensors, we can detect falls, as well as medical emergencies sending notifications to any devices or triggering script and routines.
• Smart plugs prevent children from leaving devices on, preventing fire risks, as well as reducing energy if they’re regularly leaving lights on.
• Create scripts, or routines for older adults, simplifying living and help maintain independence.

2. Access Control and Security:

• Smart locks and door sensors prevent wandering, keeping both young children, and vulnerable adults safe.
• Face detection on CCTV helps monitor who is in the property.
• Keyless entry, combined with facial recognition or scheduling, allows you to grant access to carers or guests at specific times, or restrict entry to certain areas of the property for enhanced security and control. Perfect for Carers, Cleaners, Gardeners etc.
• Cameras and intercoms allow remote monitoring, and allow your easy communication throughout the property. Great for calling your kids downstairs for dinner.

3. Emergency Response Integration:

• Integrate panic buttons and wearables alert, as well as full detection with mmWAVE Sensor – for family or emergency services alerts

4. Medication and Routine Reminders:

• Audible or Visual prompts help maintain routines for elderly residents – Create notifications and audible alarts to remind you to take medication.

5. Water and Gas Safety:

• Smart leak detectors and shut-off valves help prevent flooding or gas leaks.

6. Environmental Monitoring:

• Smart thermostats and air quality sensors maintain safe conditions

7. Fire and Carbon Monoxide Protection:

• Automated smoke and CO detectors trigger instant alerts.
• Integrated systems can turn off ovens or kitchen appliances if they have been left on.

AI-Powered Security Features:

Face Recognition:

• Detect family, carers, or intruders.
• Send alerts for unknown visitors.
• Get notifications when your children return from school or if an unknown person approaches the property.

Vehicle & Number Plate Recognition:

• Automatically open gates for recognised vehicles.
• Trigger routines based on arrivals or departures.

Behaviour Analysis:

• Detect unusual movement patterns, fall detection.
• Activate lights, alarms, or cameras automatically.

Access Control:

• Biometric readers and smart locks provide automated, context-aware entry.
• Restrict access to carers or staff at specific times, or different parts of the property.

Integration with Automation Scripts:

• AI triggers lighting, AV, or security scenes automatically

Home Automation transforms daily life by:

• Automating routines and schedules
• Enhancing security and peace of mind
• Simplifying entertainment and home cinema control
• Reducing energy consumption
